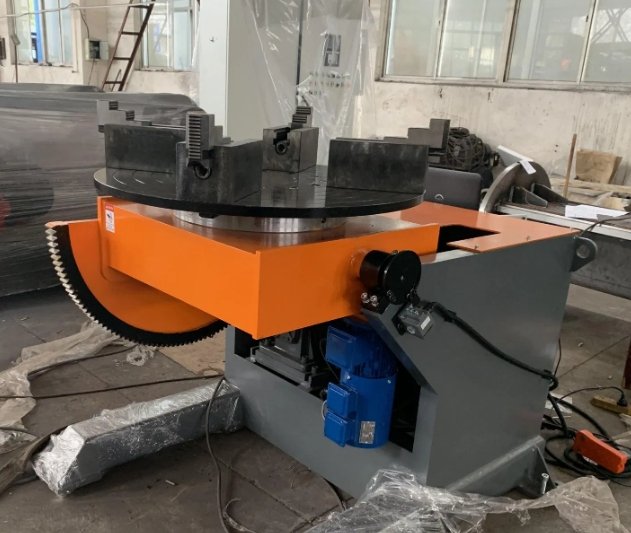

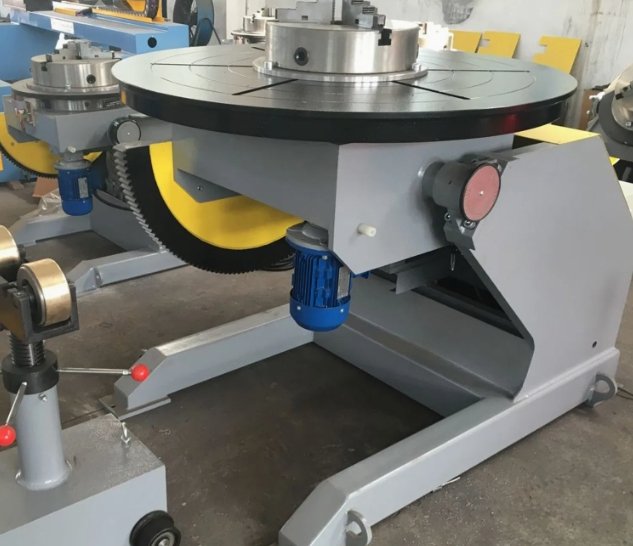

Heavy-duty rotary table welding positioner engineered for precise pipe and flange manipulation, offering high load capacity and variable speed control for industrial applications.
Designed for positioning diverse workpieces including pipes, flanges, and special structures.
Features a robust working table with T-slots for secure workpiece clamping.
Variable speed rotation control via stepless frequency conversion ensures optimal welding speeds.
Precise 0-120° tilting capability for accessing ideal welding angles.
Self-locking gear mechanisms provide stability and safety during operation.
Heavy-duty, stress-relieved frame construction ensures durability and accuracy.
Facilitates improved weld quality and increased production efficiency in industrial settings.
Rated Load Capacity: Example up to 3000kg (Varies by model)
Worktable Diameter: Example ￠1400mm (Varies by model)
Turning Speed Range: 0.05 - 0.5 RPM (Variable Frequency Control)
Tilting Angle Range: 0 - 120°
Maximum Eccentricity: Example 200mm (Model dependent)
Operating Voltage: Customizable (Range: 110V - 575V)
