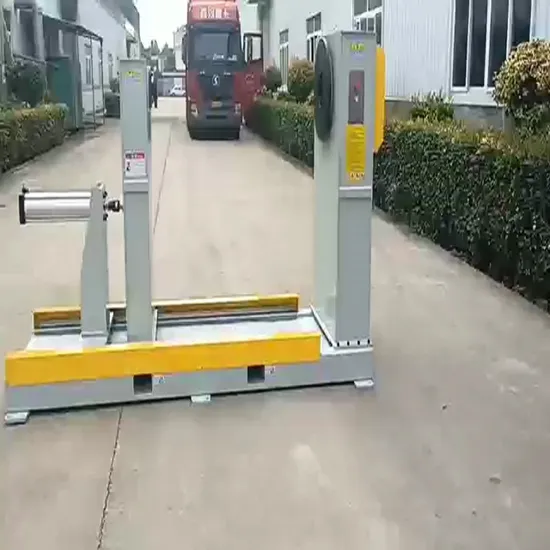

Adjustable Single-Axis Servo-Motor Welding Positioner

A specialized servo-driven positioner for industrial robots, designed to handle complex workpieces for optimal welding and cutting.

Product Description

Engineered for linkage with industrial robots, enabling remote operation via robot teaching aids for seamless integration.

Constructed from high-quality steel, stress-relieved and precision-machined to guarantee high accuracy for critical applications.

Features a high-precision reducer and servo motor, ensuring exceptional rotary accuracy, precise positioning, and robust load-bearing capacity.

The tailstock travel is adjustable up to 3000mm, offering flexibility for various workpiece lengths and complex geometries.

Achieves a repeat positioning accuracy of ±0.08mm, making it ideal for tasks demanding high precision and consistent quality.

The overall frame is treated with rust-proof exterior paint, providing durability and longevity in industrial environments.

Product Parameter

Model: AUT-SWP-ZW-500-WT

Rated Payload: 500kg (Axis radius ≤ 400mm)

Rated Speed of Gyration: 50°/S

Repeat Positioning Accuracy: ±0.08mm (At R=400mm)

Adjustable Travel of the Tailstock: 0-3000mm

Maximum Angle of Gyration: ±360°
