Double Axis Robotic Welding Positioner with Chuck for Pipe Workpieces

High-precision double-axis servo welding positioner featuring an integrated chuck, designed for automated robotic arc welding and cutting of pipe and tubular components.

Product Description

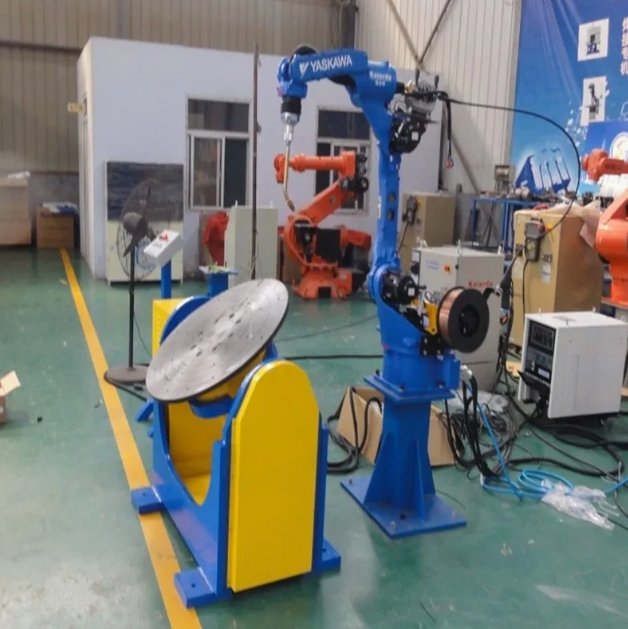

Specialized double-axis servo positioner optimized for integration with industrial arc welding robots.

Achieves ideal welding positions and speeds for complex pipe and tubular workpiece geometries.

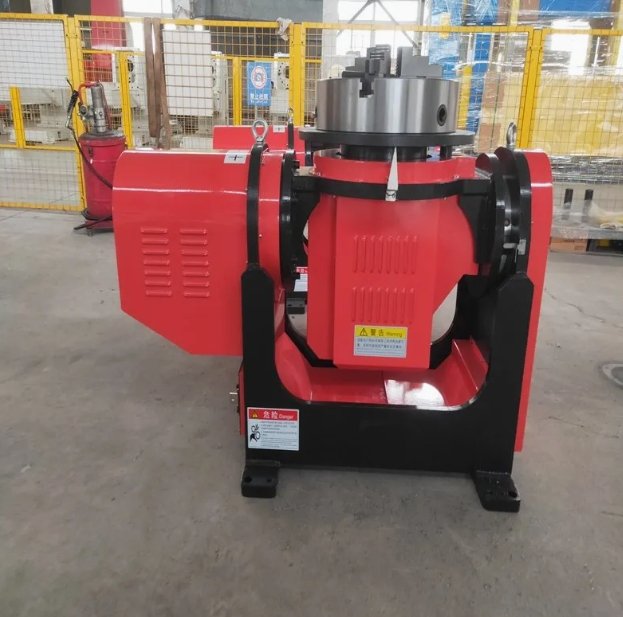

Equipped with a chuck mechanism for secure and repeatable clamping of pipe sections.

Provides high-precision, servo-driven rotation (Axis 1: ±90°) and gyration (Axis 2: ±360°).

Offers robust load capacities suitable for various industrial pipe sizes (e.g., 200kg model available).

Facilitates seamless automation through remote operation and programming via robot controllers.

Features a durable, stress-relieved welded steel frame for high rigidity and long-term accuracy.

Supports customization of specifications, color, and branding for bulk B2B orders.

Product Parameter

Type: Double Axis P Type Servo Welding Positioner

Rated Payload Example: 200kg (Axis 2 Radius ≤ R300mm)

Maximum Rotation Angle (Axis 1): ±90°

Maximum Gyration Angle (Axis 2): ±360°

Repeat Positioning Accuracy Example: ±0.08mm (At R=400mm)

Operating Voltage Options: 110V / 220V
