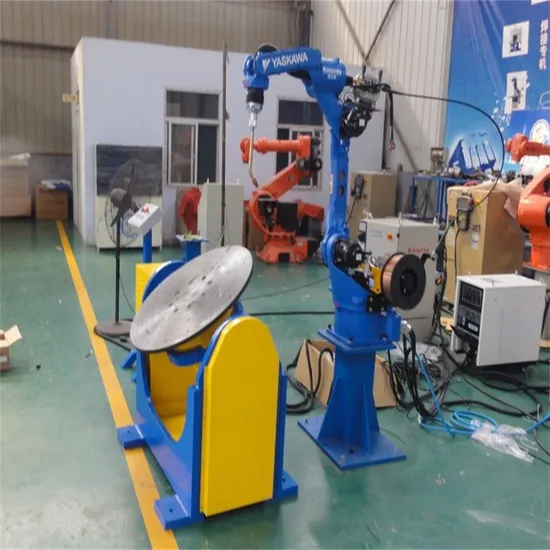

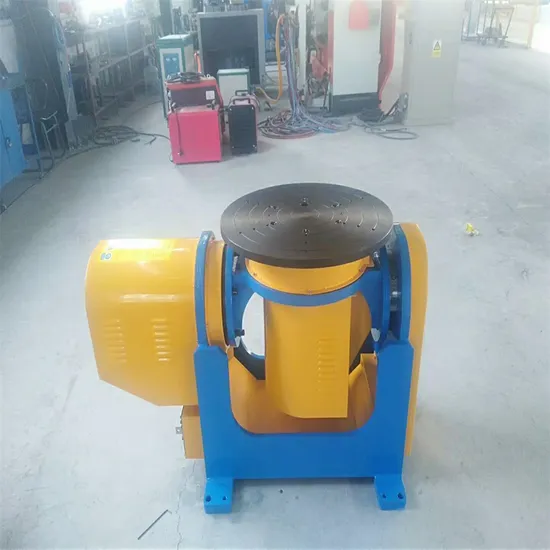

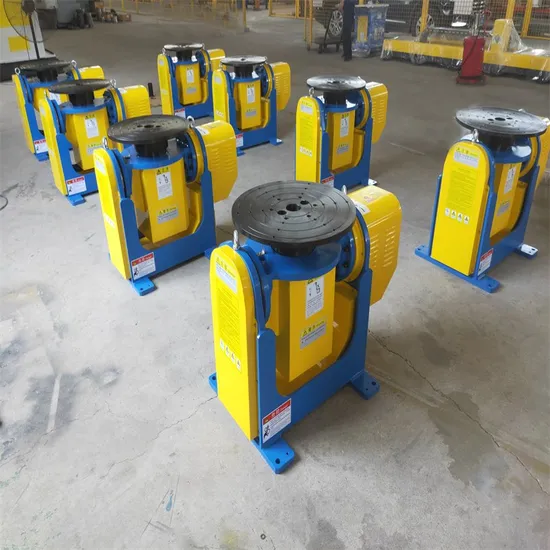

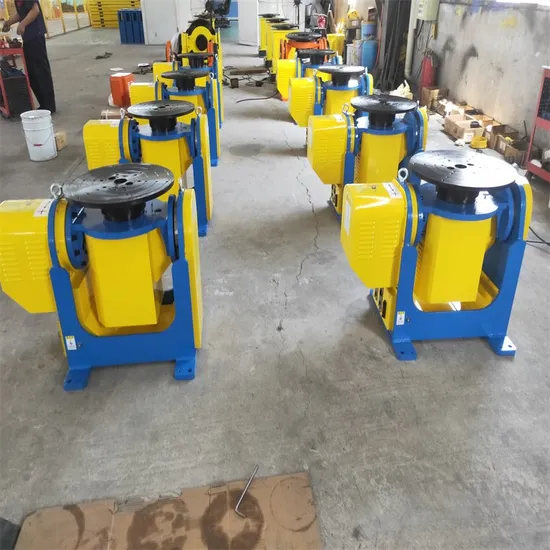

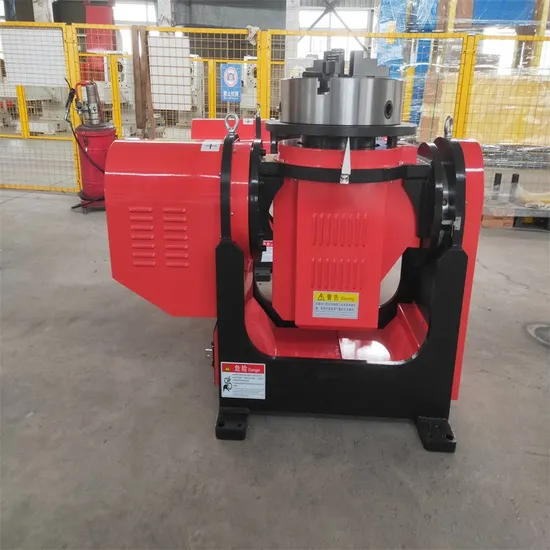

Arc Robot Arm Welding Positioner for Pipe Rotary Machine

A specialized servo welding positioner integrated with a robotic arm, engineered for complex pipe and workpiece welding and cutting.

Product Description

Integrated with a high-precision servo motor and reducer for superior rotational accuracy and reliable positioning.

The dual-axis system allows for complex workpiece manipulation, ensuring the ideal welding angle and speed are always achieved.

Features a robust welded steel frame that has undergone stress relief processing for maximum stability and long-term precision.

Enables remote operation via robot teaching aids or an external control box for seamless integration into automated production lines.

Specifically designed for welding and cutting complex workpieces, making it ideal for the automotive and heavy machinery industries.

Product Parameter

Model: AUT-DWP-P-300

Rated Payload: 200kg (at 2nd shaft axis radius ≤ R300mm)

Repeat Positioning Accuracy: ±0.08mm (at R=400mm)

Rated Rotation Speed (Axis 1): 50°/S

Rated Gyration Speed (Axis 2): 70°/S

Maximum Gyration Angle (Axis 2): ±360°
