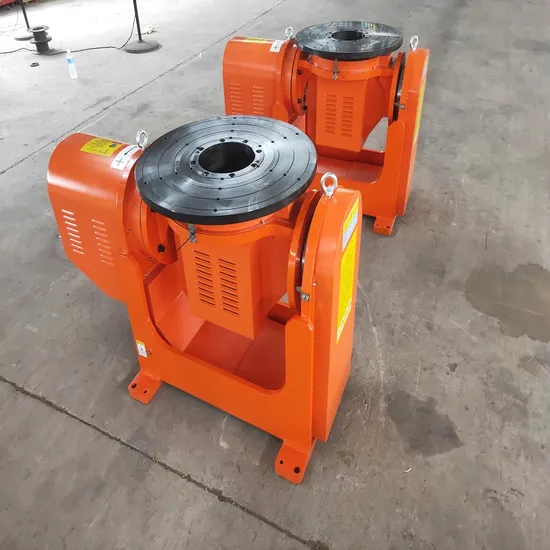

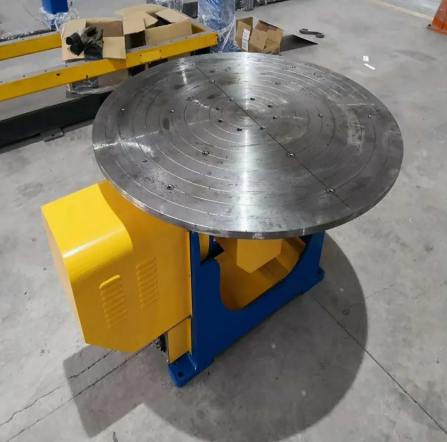

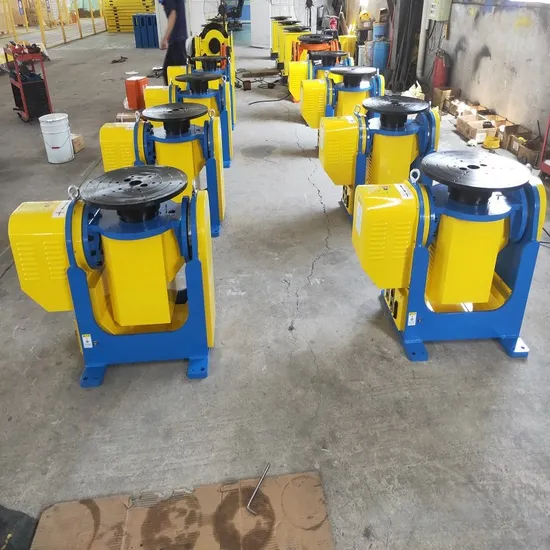

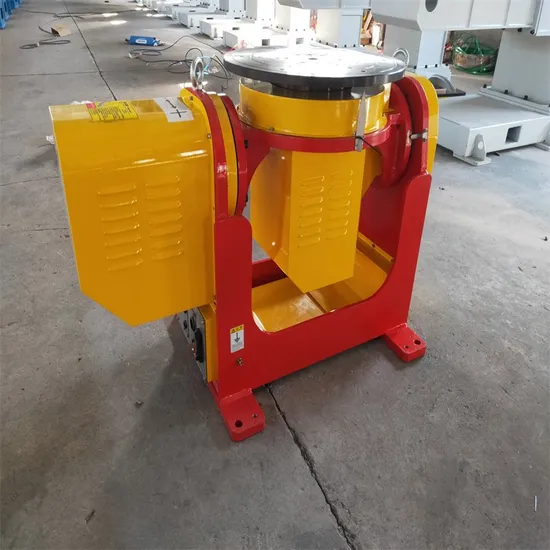

Dual-Axis P-Model Robotic Welding Positioner, 500kg

A high-precision dual-axis servo positioner engineered for robotic welding and cutting of complex workpieces, enhancing production efficiency.

Product Description

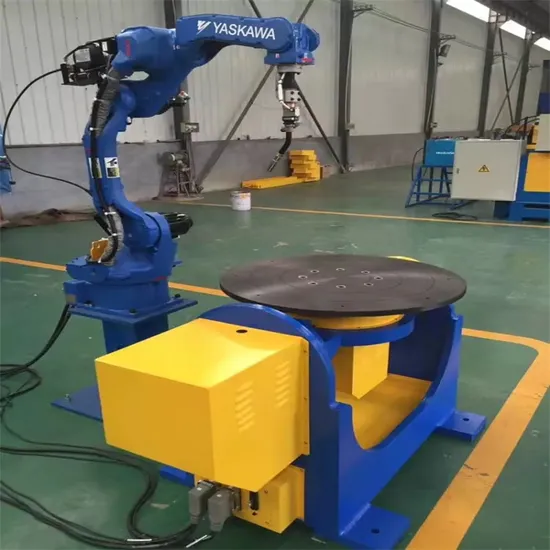

Integrates seamlessly with industrial robots via remote operation for automated welding and cutting tasks.

Constructed with a high-quality steel frame, stress-relieved and precision-machined for maximum stability and accuracy.

Employs a high-precision reducer and servo motor system to ensure exceptional rotational accuracy and reliable workpiece positioning.

Features a dual-axis design with ±90° tilt and ±360° rotation, providing optimal access to complex weldments.

Boosts productivity by enabling faster, more accurate machining speeds for intricate welding applications.

Designed for heavy industrial use in sectors like automotive manufacturing, construction machinery, and shipbuilding.

Product Parameter

Rated Payload: 500kg (at 2nd shaft axis radius ≤ R300mm)

Repeat Positioning Accuracy: ±0.08mm (at R=400mm)

Maximum Rotation Angle of Axis 1: ±90°

Maximum Gyration Angle of Axis 2: ±360°

Rated Rotation Speed of Axis 1: 50°/S

Rated Gyration Speed of Axis 2: 50°/S
